PC Based Table Top UTM
150000.00 - 300000.00 INR/Piece
Product Details:
- Supply Ability : 1 Per Month
- Click to view more
X
Price And Quantity
- 150000.00 - 300000.00 INR/Piece
- 1 Piece
Trade Information
- Kolkata
- 1 Piece Per Month
- 1 Months
- All India
Product Description

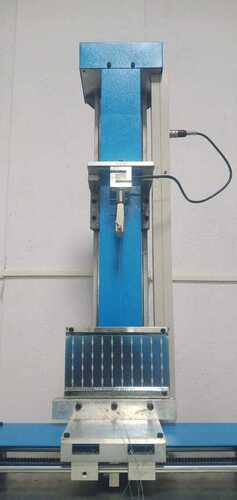

PC based Table Top UTM
Ctronix brand, PC based table top UTM is designed to accurately measure the tensile/compressive strength along with elongation of samples at Constant Rate of Elongation (CRE). This machine is completely automatic and once the user attaches the sample to the Jaws the complete operations is done from the host PC.
A one of its kind automatic PC based table-top Universal Testing Machine capable of:
- Measuring the break force with an accuracy +/- 0.5% and resolution of 0.1 Kgf.
- Measuring elongation with an accuracy of +/- 1.0%
- Displaying in Real Time the load v/s elongation.(the graphs have the ability to display load at any point of extension)
- Stress / Strain Curve
- Calculate Young's Modulus.
- Extensive reporting capabilities including the following but not limited to:-
- Min, Max, Avg Force at break.
- SD, CV% of the group of Samples.
YouTube Video: https://youtu.be/iI3njzlqz7Q
OPERATING PROCEDURE:
- User needs to manually place the sample between the jaws.
- The operator then needs to start the system by clicking the START Button and the following steps are performed
- The sample is stressed at a constant rate of elongation (CRE),
- Real time display of Force and Elongation graph (in the software provided by us)
- On Detection of break
- The machine stops.
- The graph freezes and on save of the test parameters the Jaw returns back to the sample length.
TECHNICAL SPECS (Can be made to suit your requirements)
| Parameter | Description |
| Load | 0 - 500 Kgf (5KN) |
| Load resolution | 0.1 Kgf |
| Load accuracy | + / - 0.5% |
| Sample Length | 50 - 100 mm. (can be changed) |
| Sample Width | 60 mm.(variable) |
| Jaw travel (Minimum Maximum Separation) | Minimum : 50 mm Maximum : 700 mm. (can be modified on request) |
| Jaw travel speed | 250 mm. /minute (can be adjusted 5, 25, 50, 250 and 500 mm.) |
| Jaw travel resolution | 1 mm |
| Jaw travel accuracy | +/ - 1% |
| Linear Guide/Slide accuracy | 0.1 m.m. over 300 m.m |
| Drive | Digitally controlled Motor |
| Back-lash | < 10mn deg. |
| Side play | < 0.1 m.m. |
| Stopping the machine on break | Automatic on break |
| Jaw return to test position , preset by the operator | On reset |
The force can be displayed in Kg. force or Newton as per your choice and reporting capabilities tailor made to your requirements
REPORT P.C.BASED MODEL:
Report for a single test run comprises of:-
- Date. Time. Sample No. Source or material (any other parameter, as requested by you)
- Force v/s Elongation graph.
- Force and Elongation at break.
- Stress v/s Strain graph with Tensile Strength @ Initial, Elastic limit, and at Rupture.
- Load at any point of elongation as keyed in by the operator.
Report for sample set and individual test comprises of:
- Sample no: || Date and Time: || Lot no:
- Min, Max, Avg, SD of Force at Break
- Elongation at Break
- Tensile Strength of the lot.
All reports are in MS Excel and can be used for reference later.
VARIANTS:
- Crushing strength of Sintered iron ore pellets
- Crushing strength of activated charcoal balls.
- Tensile strength and elongation of rubber
- Tensile strength and elongation of thin wire
